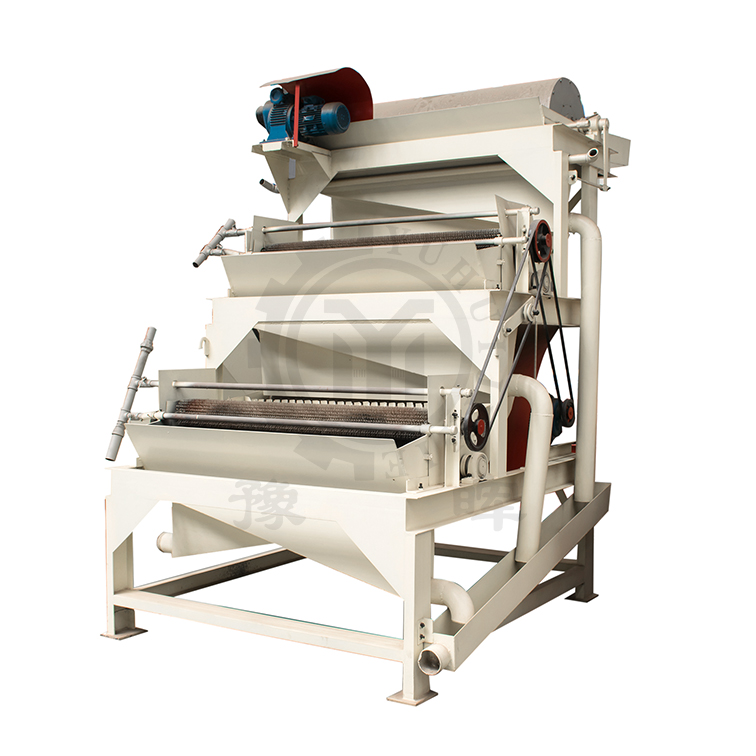

Manganese magnetic separator （iron separator）
Introduction of Manganese magnetic separator:
The main features of this machine: short magnetic circuit, little magnetic flux leakage, remarkable magnetic field density(13000-15000GS), enrichment ratio and high recovery rate after two sorting, and the high effective removal of iron. The machine can also be used for manganese and other weak magnetic minerals sorting operation.
Main Technical Parameters
|
Model
|
Magnetic Field Strength
|
Separation size(mm)
|
Capacity (t/h)
|
Power (kw)
|
|
QCG-2-60-110
|
12000-14500
|
0.4-5
|
2-3
|
1.1
|
|
QCG-2-110-150
|
12000-14500
|
0.4-5
|
4-5
|
1.5
|
|
QCG-2-150-220
|
12000-14500
|
0.4-5
|
4-6
|
1.5
|
|
QCG-2-220-3200
|
12000-14500
|
0.4-5
|
5-7
|
3.0
|
More of our company product information:
Our company developed a new type of high intensity magnetic separator with wet separation. It integrates physics and mecha
nics, fluid mechanics and magnetism with remarkable magnetic density(magnetic strength 1300GS-1500GS). It is mainly used for removal of iron, but it is also has a better selection efficiency for hematite, limonite, specularite, sideritem magnetic, clay mineral and other weak magnetic minerals.
|
Model
|
Magnetic Field Strength
|
Capacity (t/h)
|
Power (kw)
|
|
QCSX1020
|
13000-15000
|
3-8
|
5.5
|
