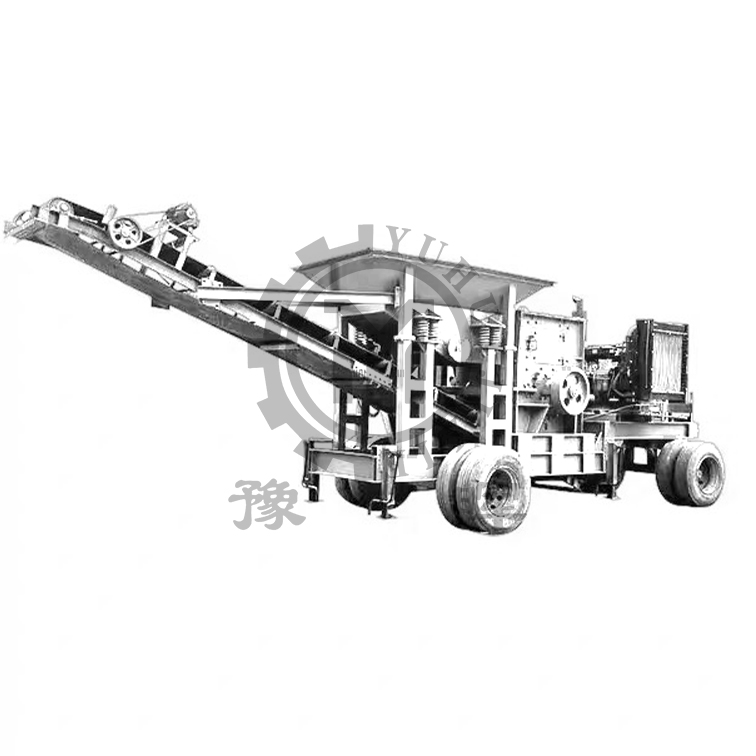

mobile crushing plant
Description of mobile crushing plant：
This series of mobile crushing plant is for material processing that is mainly used in metallurgy, chemical industry, building materials, hydropower that need to be moved and transferred, especially for the mobility working, such as highway, hydropower project. The customer could make different disposition according to the raw material’s different kinds, scale, and the different requirements of the finished material.
Application of mobile crushing plant:
Mobile crushing plant is a kind of crushing machine mainly used for processing materials in smelting, chemical industry, production of building materials, and power industry, etc. It is especially suitable for processing the stones used in road building and hydraulic power projects. Users can adopt different configurations according to categories and sizes of materials, and so on.
Main technical parameters of mobile crushing plant:
|
PP Jaw mobile crushing plant |
PP600 |
PP750 |
PP900 |
PP1060 |
PP1200 |
PP1300 |
|
|
Shipping size |
Length (mm) |
8600 |
9600 |
11097 |
13300 |
15800 |
9460 |
|
Width (mm) |
2520 |
2520 |
3759 |
2900 |
2900 |
2743 |
|
|
Height(mm) |
3770 |
3500 |
3500 |
4440 |
4500 |
3988 |
|
|
Weight(kg) |
15240 |
22000 |
32270 |
57880 |
98000 |
25220 |
|
|
Axle load (kg) |
10121 |
14500 |
21380 |
38430 |
64000 |
14730 |
|
|
Tractor weight (kg) |
5119 |
7500 |
10890 |
19450 |
34000 |
10490 |
|
|
Jaw crusher |
Type |
PE400×600 |
PE500×750 |
PE600×900 |
PE750×1060 |
PE900×1200 |
PE×300×1300 |
|
Feed opening(mm) |
400×600 |
500×750 |
600×900 |
750×1060 |
900×1200 |
300×1300 |
|
|
Adjustment range of discharge hole(mm) |
40-100 |
50-100 |
65-180 |
80-180 |
95-225 |
20-90 |
|
|
Capacity(m2/h) |
10-35 |
25-60 |
30-85 |
70-150 |
100-24 |
10-65 |
|
|
Feeder |
Type |
GZD8030 |
GZD8030 |
GZD9638 |
GZD1149 |
GZD1352 |
GZD8030 |
|
Volume of material cabin(m2) |
3 |
4 |
7 |
10 |
10 |
3 |
|
|
Width of material cabin(mm) |
2200 |
2500 |
3000 |
3000 |
3000 |
2200 |
|
|
Belt conveyor |
B500×6 |
B650×7 |
B800×8 |
B1000×11 |
B1200×13 |
B800×7 |
|
