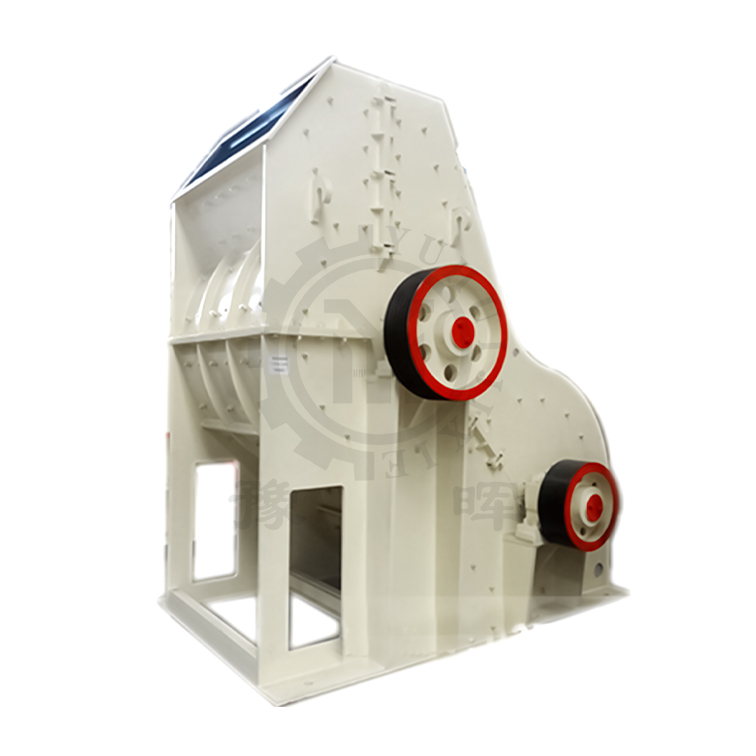

Two stage crusher
Introduction of two stage crusher:
Based on long-term survey, fine design and courageous practice,two-stage sieve-free wet material fine crusher was successfully developed with patent of utility model,capable of crushing highly wet and hard materials such as coal slack,shale,cinder,construction waste,slag,furnace slag,cement,refractories,heat insulating materials,etc.as well as more than300 kinds of building materials.Better crushing effect can be accomplished in respect of building of brick plant and coal separation plant.
Two stage crusher features:
1. two-stage and non-sieve at the bottom
2. Big crushing rate
3. Wet materials can be broken
4. Save electric 20%
5. Robust construction and easy operation
Advantages of two stage crusher:
First, it does not grate at the end of mesh, all kinds of wetlands can be crushed slag, that is, to remove from the water can also be crushed at any time, there is no bond to plug the phenomenon.
Second, at the same time upper and lower levels of double smash, broken than large, the expected size of not more than 3mm, can meet the production standard bricks, hollow brick requirements.
Third, high output, low consumption.
Two stage crusher parameters:
Model |
Feeding size (mm) |
Discharging size (mm) |
Capacity (t/h) |
Allowed moisture content of materials |
Motor power (kw) |
Overall dimension(mm) |
2PC1100×1000 |
≤180 |
≤3mm(less than 2mm, more than 80%) |
60-90 |
<20% |
90+110 |
4086×2030×2337 |
2PC900×800 |
≤120 |
50-70 |
55+75 |
3950×1750×2280 |
||
2PC800×600 |
≤120 |
40-60 |
45+55 |
3485×1400×2254 |
||
2PC800×600 |
≤120 |
40-60 |
45+55 |
3625×1314×2065 |
||
2PC600×400 |
≤100 |
15-25 |
18.5+22 |
2350×926×1630 |
