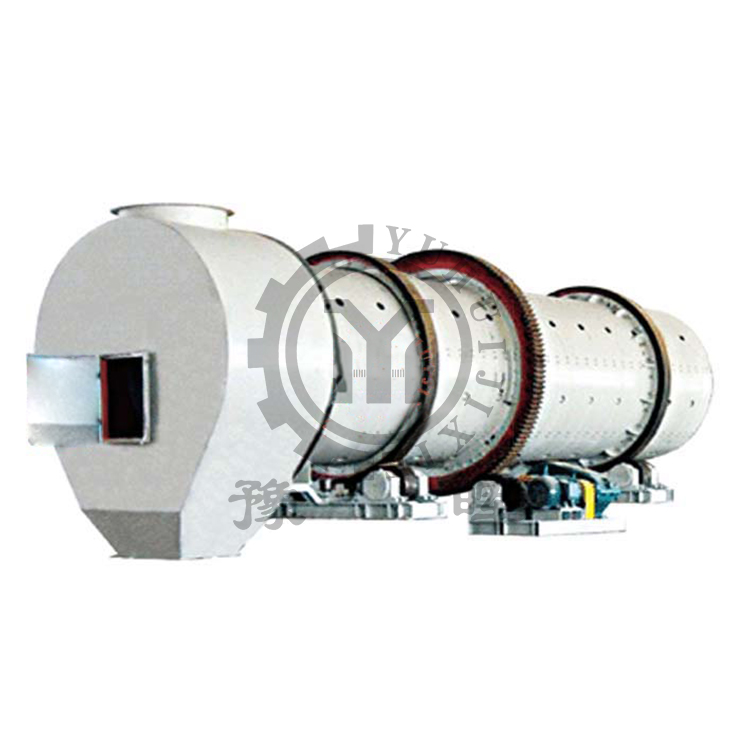

Drum granulator
Drum granulator application:
As the one of the key equipments in fertilizer industry, rotary drum granulator is applicable to cold, heat, and guniting and ammoniated granulation and big scale fertilizer production of high, medium and low concentration.
Drum granulator advantages:
The cylinder body adopts special stainless steel or rubber plate lining structure. It can remove scar and peel burl automatically It has the advantages of high intensity of granule, high production, erosion proof, abrasion proof, low energy consumption, long service life, convenient operation and maintenance etc.
Working Principle of the Drum Granulator:
The main working method is aggregate wet granulation. Through a certain amount of water or steam, so that basic fertilizer mix wet in tube body after the full chemical reaction. Under a certain liquid conditions, in virtue of rotary exercise of the rotating cylinder, so that material particles have a extrusion stress, reunite to ball.
Technical parameters of drum granulator:
|
Specification(m) |
Shell |
Capacity(t/h) |
Power(kw) |
|||
|
I.D.(mm) |
Length(mm) |
Slope(°) |
Rev(r/min) |
|||
|
Ø1.4×4 |
1400 |
4000 |
2.5 |
15.05 |
5 |
11 |
|
Ø1.6×6 |
1600 |
6000 |
2.5 |
12 |
7 |
15 |
|
Ø1.8×6 |
1800 |
6000 |
2.5 |
11.5 |
8 |
15 |
|
Ø2.0×7 |
2000 |
7000 |
2.5 |
10.8 |
14 |
30 |
|
Ø2.2×8 |
2200 |
8000 |
2.5 |
10.85 |
20 |
37 |
|
Ø2.4×8 |
2400 |
8000 |
2.5 |
9.6 |
25 |
55 |
|
Ø2.8×8 |
2800 |
8000 |
1.5 |
6.5 |
35 |
90 |
