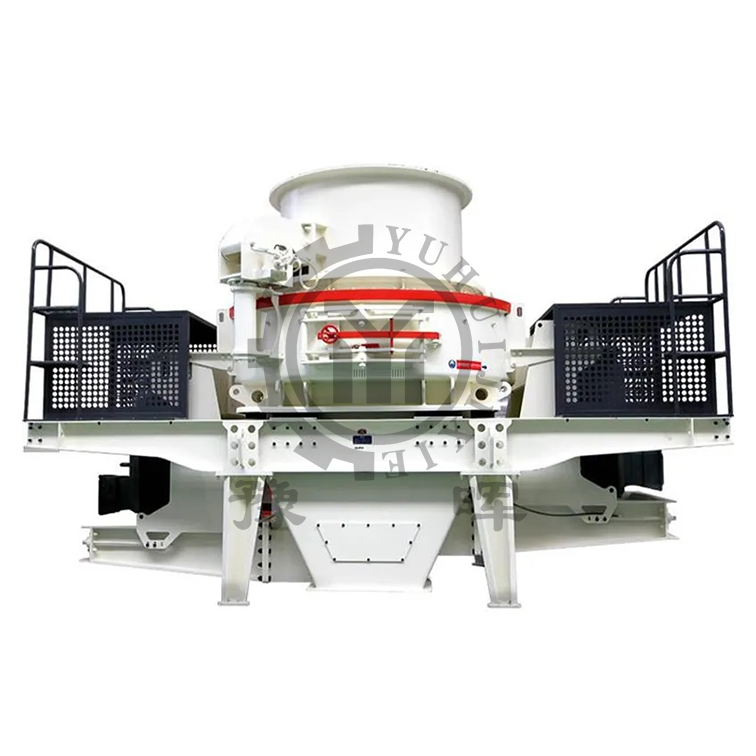

Sand Making Machine
Advantages of sand maker:
1. Simple structure and low investment cost.
2. Special bearing installing and advanced principle axis design, heavy duty and high rolling.
3. High reliability and low noise
Introduction of sand maker:
PCL series vertical shaft impact crusher is also called sand-making machine, which is developed by our company’s expert’s wisdom and correct decision-making. This machine has already reached the international advanced level with high efficiency and energy-conserving. It plays a non-substitutive role in mining crushing equipment finely and is the most effective and reliable crushing machine at present. Our company has been manufacturing sand-making machine since 2001, and in the national market has achieved large market share. The performance is more perfect, which attracts more and more customers at aboard and home to come to our company. This machine is suitable for ores, cement, refractory material, carborundum, glass raw material, building sand, building stones and many metallurgy, slag industries.
Usage of sand maker:
This series of sand-making machine is suitable to crush and reshape the flexible, mid-hard and very hard materials. It is widely used in mining, cement, fireproof materials, carborundum, glass raw materials, building sand, building stones and many metallurgy, slag industries. It is much more professional than other crushers in crushing hard and anti-abrasion materials such as carborundum, sintered bauxite, magnetite and so on. It is usually used as sand-making machine in the sand production line.
Working principle of sand maker:
The material enters into the sand-making machine via feed hopper. It will be divided into two parts by distributor: one part of the material enters high speed rotating impeller through the middle of distributor and was rapidly accelerated in impeller. The acceleration speed can achieve as hundreds of times as g
ravity acceleration, then the part material is thrown out from the three impeller runners in 60-70 meters/SEC. At first, they impact with some materials falling around which is received by the distributor. And they will go to a cavity vortex, is rebounded by material lining up to the top of the vortex cavity, and change the direction of movement to the deflection downward motion. Materials emitted from the impeller port form continuous materials. Such a material in the crushing cavity vortex is hit twice or more times, and grinded. The broken material is discharged through bottom port. In the process of breaking down materials, materials impact with each with, not keeping in touch with metal components, but directly contact, grind and crush with the material layer. Therefore, it reduces the pollution, prolongs the time of abrasion. Vortex’s self-circulation inside eliminates the dust pollution.
The technical parameters:
Model
|
Max. Feeding Size(mm)
|
Power
(KW) |
Impeller Speed
(r/min) |
Capacity
(t/h) |
Overall Dimensions
(mm) |
Weight
(including motor)(t) |
PCL-600
|
35
|
22-55
|
2000-3000
|
12-30
|
2500×Ф1600×2260
|
5.6
|
PCL-750
|
45
|
45-90
|
1500-2500
|
25-55
|
2780×Ф1800×2700
|
7.3
|
PCL-900
|
45
|
90-180
|
1200-2000
|
55-100
|
3900×Ф2160×2770
|
12.1
|
PCL-1050
|
50
|
150-264
|
1000-1700
|
100-160
|
4660×Ф2450×3660
|
16.9
|
PCL-1250
|
50
|
264-360
|
850-1450
|
160-300
|
5600×Ф2950×4000
|
22
|
PCL-1350
|
50
|
264-440
|
800-1200
|
200-360
|
5340×Ф2940×3650
|
26
|
Note: The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
