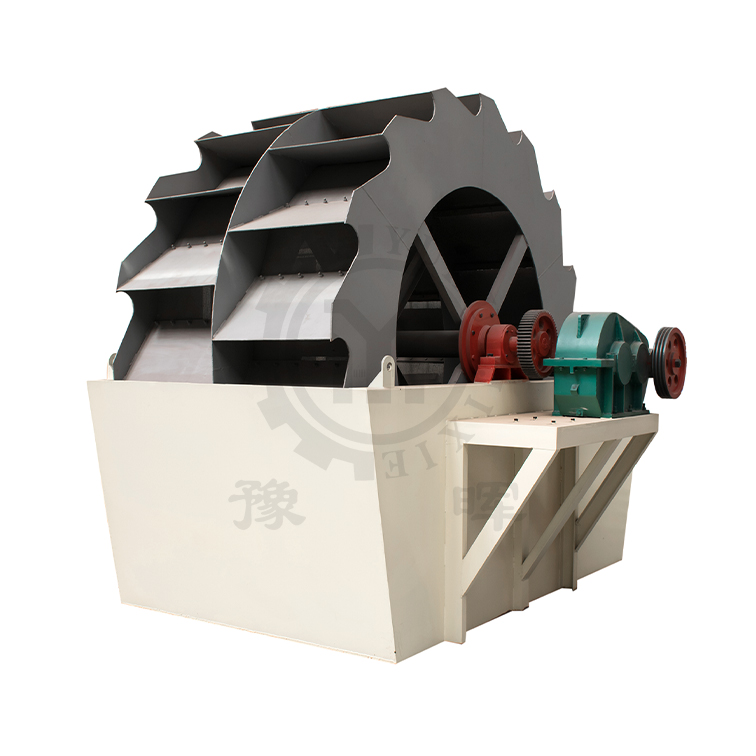

Sand Washing Machine
Characteristics of Sand Washer:
1.Simple structure, high level cleaning, low power consumption
2.Many models are available for you to choose from
3.Small loss of sand during the process of sand washing
4.Convenient maintenance, high efficiency
Working principle:
The motor and reducer drive the impeller to slowly rotate. Materials enter the machine through the feedertrough, and are separated from the soil and impurities covered on the sand surface due to the function of propulsion, mixing and water flow. The clean fine sand is poured into the discharge chute under the propulsion of spiral,and the soil and impurities are discharged from the overflow port under the effect of water flow.
Application:
1.a kind of bucket-wheel-washing equipment,can separate sand and powder from the soil
2.widely used in construction sites,gravel plants, concrete hydropower dam site and many other industries
3.seal structure,reliable transmission,ensuring the cleaning effect of dehydration
Main technical parameter:
|
Specification and model
|
Capacity (t/h)
|
Return sand capacity (t/h)
|
Power (kw)
|
Weight (kg)
|
|
GX2000
|
8-40
|
3-8
|
4
|
1900
|
|
GX2600
|
20-100
|
5-15
|
5.5
|
3500
|
|
GX2800
|
50-130
|
8-70
|
7.5
|
5100
|
|
GX3200
|
240-300
|
80-130
|
11
|
8800
|
|
GX3600
|
280-500
|
100-200
|
15
|
14200
|
